World’s 1st dual-fuel LNG battery hybrid PCTC delivered

Vessels

United European Car Carriers (UECC), a Norway-based provider of shortsea RoRo transportation, has taken delivery of its first dual-fuel LNG battery hybrid pure car and truck carrier (PCTC).

UECC
PCTC

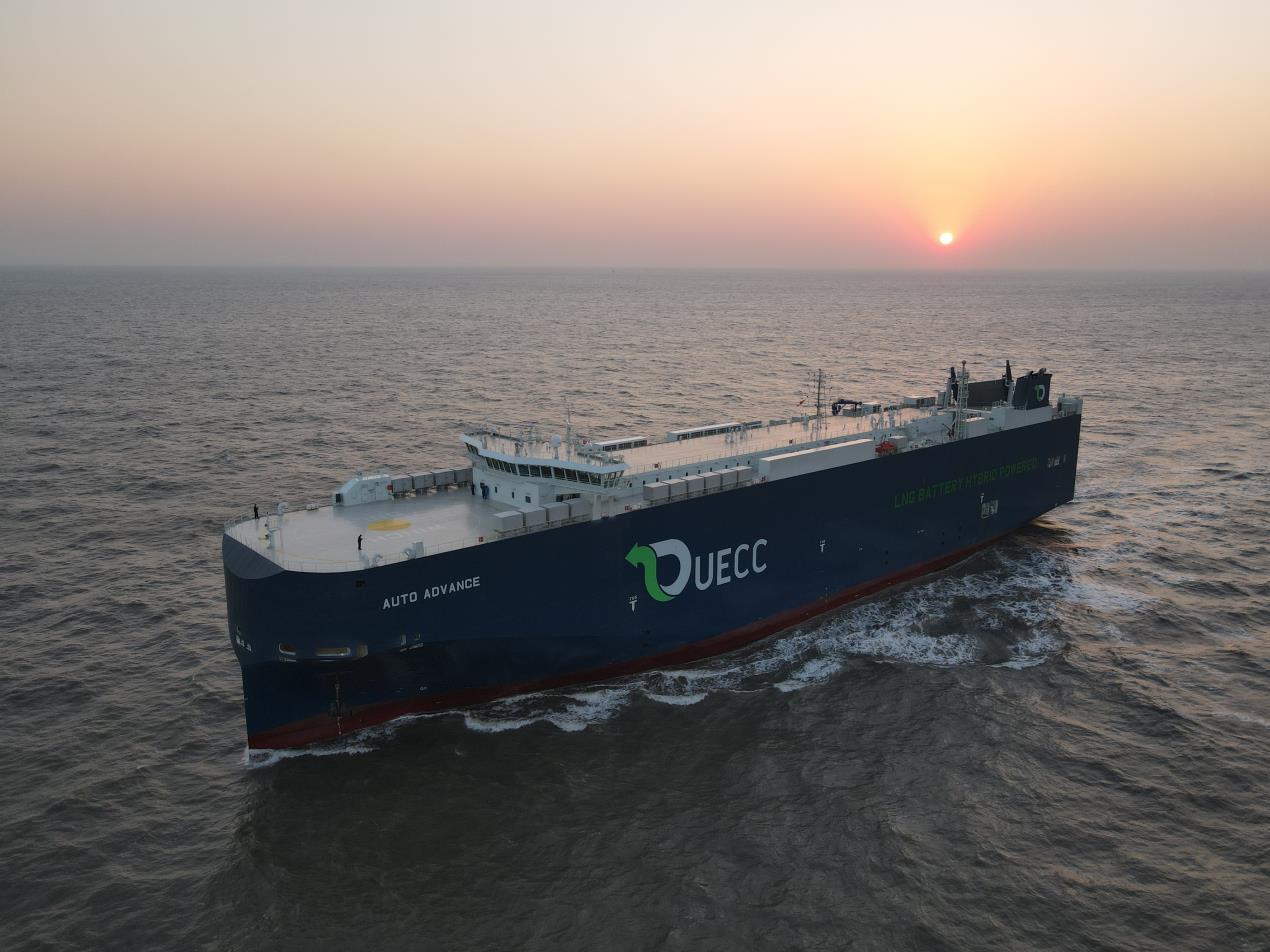

Image Courtesy: UECC

The newbuild, said to be the world’s first of its type, is set to provide significant gains in energy efficiency and emissions reduction as it enters service this year to boost UECC’s efforts to decarbonise its fleet.

To be named Auto Advance, the vessel is the first in a series of three new PCTCs that are being delivered by China’s Jiangnan Shipyard. The remaining two sister vessels are scheduled for delivery in 2022.

Related Article

The three sister shps measure 169 by 28 metres and have a capacity for 3,600 vehicles on 10 cargo decks.

“Having brought into operation the first-ever dual-fuel LNG PCTCs five years ago, UECC is now taking delivery of the first of three of the world’s first dual-fuel LNG battery hybrid PCTC to be built,” Glenn Edvardsen, UECC chief executive, commented.

“This is another big step forward in eco-friendly ship operations that shows we walk the talk.”

“This is also a technological milestone as the successful performance of the vessel in sea trials has vindicated our confidence in the viability of this innovative solution.”

UECC has developed the design, together with DNV and Jiangnan’s in-house ship designer Shanghai Merchant Ship Design & Research Institute, to incorporate proven technology in a new configuration geared to enhancing operational and environmental performance.

Technology puzzle

LNG battery hybrid technology, together with an optimised hull design for better fuel efficiency, will enable these newbuilds to exceed the IMO requirement to cut carbon intensity by 40% from 2008 levels within 2030, according to UECC.

Emissions of carbon dioxide are expected to be reduced by around 25%, SOx and particulate matter by 90% and NOx by 85% from the use of LNG, while the newbuilds will also meet the IMO’s Tier 3 NOx emissions limitations for the North Sea and Baltic Sea.

Dual-fuel engine technology has now been combined with an energy storage system (ESS), supplied by Finland’s WE Tech, incorporating a battery package from Corvus Energy that will be charged by a permanent magnet, directly driven shaft generator or dual-fuelled generators.

The ESS, which will provide power to the main switchboard with a DC link for power distribution, will enable peak shaving for the main engine and auxiliaries to reduce fuel consumption and emissions, with a controllable pitch propeller, bulb rudder and dual-fuel boiler also part of the power system.

These vessels will require only two auxiliary dual-fuel gensets, in addition to the main engine, as the ESS and shaft generator provide a spinning reserve to eliminate the need for another genset that would normally be required.

Smart energy management

Battery capacity is based on detailed modelling of the vessels’ expected operational profile to economise on installation, with payback time for the ESS estimated at only five years, according to UECC’s head of ship management and newbuilding Jan Thore Foss.

The hybrid solution, which has gained DNV’s Battery Safety notation, will be steered by an intelligent energy management system, supplied by Kongsberg Maritime, that will serve as a control system for overall energy production and consumption – essentially the ‘energy brain’ of the vessel.

Batteries can be most efficiently charged while at sea using the shaft generator so that they are fully charged when entering port, enabling the vessel to manoeuvre in port using bow thrusters driven solely by battery power that can also supply the ship’s other energy needs while it is docked.

“This will effectively eliminate emissions while in port and these vessels are also equipped to connect to green power from shore that is becoming increasingly available in order to reduce harmful emissions of NOx, SOx and particulate matter,” Foss explained.

Operational flexibility can deliver significant fuel efficiency gains and Foss believes this, combined with a low-emissions profile, will give the vessels an advantage in the European market as EU plans to include shipping in the Emissions Trading System are set to hike costs for pollutive vessels.

Related Article

Fuel optionality

“LNG is presently the most environment-friendly and widely available low-carbon fuel, with an estimated emissions reduction of around 25% compared with other fossil fuels,” Daniel Gent, UECC’s energy and sustainability manager, said.

“We are therefore taking advantage of the best available fuel solution now and combining this with hybrid technology to further cut emissions. But we are not locked into LNG and these dual-fuel engines are also ready to use alternative low-emission fuels such as biofuel, bio-LNG and synthetic LNG as these become commercially and technically viable.”

Edvardsen claims that UECC, jointly owned by green-focused players NYK and Wallenius Lines, is presently the only shipping company in its regional market segment that is investing in sustainable newbuilds.

“UECC has already achieved a substantial reduction in the carbon intensity of its fleet, but we aspire to do much more,” he concluded.
