Building confidence in marine energy technology through certification

Innovation

The newly released IEC 62600-4 Technical Specification reduces risk in marine energy convertors through technology qualification.

Illustration (Courtesy of IEC e-tech)

By Winston D’Souza (Lloyd’s Register) and Peter Scheijgrond (Project manager INTERREG 2SEAS MET-Certified for Dutch Marine Energy Centre); The article first appeared on IEC e-tech.

Illustration (Courtesy of IEC e-tech)

Technological innovation can often lead to the development of novel designs and concepts that cannot be certified against existing normative rules or international codes and standards.

Hence, in the absence of any such benchmarks, these technologies (or their respective novel components) require a different systematic verification and validation process to identify, quantify, analyze and manage operational risks that may arise.

The marine energy (ME) sector is one of the fastest growing sectors involving the development of novel marine energy converters (MECs).

Although international standards specifically tailored for this sector are fast emerging, in the interim, how does one reduce risk associated with the deployment of MECs?

The process of technology qualification (TQ) provides a starting point for achieving certification, which is an important step both for attracting finance as well as providing confidence that the MEC technology has been independently assessed through a structured process.

As part of the IEC 62600 standard series, IEC Technical Committee 114 (IEC TC 114) recently published a new part for the international standard to support the assessment of such novel technologies. This part, referred to as IEC TS 62600-4, describes the process of how ME technologies can achieve certification through technology qualification.

This technical specification provides a gateway for facilitating ME products to achieve certification by identifying which elements within the technology might exhibit the most technological risk or uncertainty and establishes appropriate qualification activities to address them.

The production of the technical specification was supported in part by the recently concluded INTERREG 2SEAS MET-CERTIFIED project. This project was led by the Dutch Marine Energy Centre, with a host of partners including certification bodies, technology developers and marine energy test laboratories contributing towards its goals, one of which included aiding the development of international standards for assessing ME technologies.

With ever increasing numbers of ME technologies globally, the goal of IEC 62600 is to provide universally accepted criteria by which MECs can be evaluated to ensure consistency in the quality of products and services being offered globally.

Under the IECRE, the IEC System for Certification to Standards Relating to Equipment for Use in Renewable Energy Applications, a TQ process leading to a certification is carried out by an independent body known as a renewable energy certification body (RECB).

Certificates awarded by RECBs are highly valued by multiple stakeholders including financial institutions, insurers, end-users and regulators as they enhance confidence for the associated MECs or their components. This plays a significant role in the commercialization of products and services offered.

The practice of TQ in accordance with IEC TS 62600-4 leading to the award of a Statement of Feasibility is a two-stage process:

Stage 01 (technology appraisal): This stage involves a comprehensive assessment of the technology in the context of a technology appraisal workshop and concludes with issuance of the technology appraisal report. The sub-stages are as follows:

  • Definition of the technology
  • System decomposition
  • Detail technology assessment
  • Detail risk assessment
  • Technology appraisal (discussion from the findings of technology and risk analysis)
  • Issuance of technology appraisal report by the RECB

Stage 02 (technology qualification plan): This stage includes the preparation of a technology qualification plan (TQP) by the technology developer, which upon approval by the RECB, results in the award of a statement of feasibility by the RECB. The sub-stages for this part of the process are:

  • Review of technology appraisal report by the technology developer
  • Drafting of a TQP by the technology developer addressing issues of concern
  • Finalization of the TQP covering details of tests, acceptance criteria, timelines, etc.
  • Submission of TQP to the RECB for assessment
  • Approval of TQP by the RECB, if no queries arise
  • Issuance of a statement of feasibility by the RECB confirming acceptance of TQP

Beyond the scope of the above two stages, the technology developer may continue its journey towards certification by engaging with an RECB in accordance with the IECRE certification process. A successful outcome from such a process will result in the award of one of the below:

  • Prototype certification
  • Component certification
  • Type certification
  • Project certification

The project team involved with the development of the IEC TS 62600-4 technical specification consisted of experts from Canada, China, France, Germany, Japan, the Netherlands, the United Kingdom and the United States. With the publication of IEC TS 62600-4, the ME sector is now equipped to provide a globally accepted structured assessment process for novel or innovative technologies, as well as offer technology developers a framework to understand how their products or services will be evaluated.

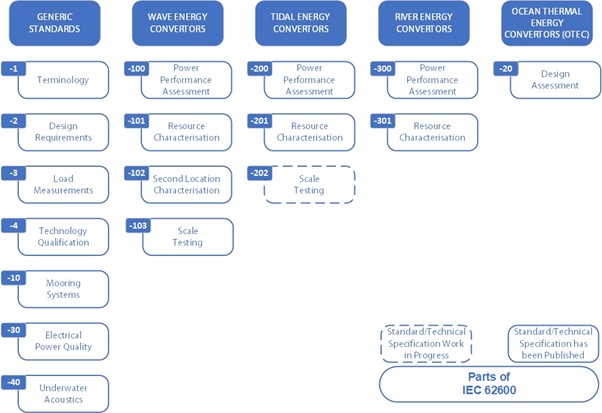

In addition to this recently published technical specification, the other parts of the IEC 62600 standard for assessing the various ME technologies are illustrated in the diagram below.

Parts of the IEC 62600 standard for assessing the various ME technologies
Parts of the IEC 62600 standard for assessing the various ME technologies
