US national lab goes nanoscale for ocean monitoring using wave energy

The researchers at the Pacific Northwest National Laboratory (PNNL) are developing a new cylindrical triboelectric nanogenerator (TENG) – a small powerhouse that converts wave energy into electricity to power devices at sea.

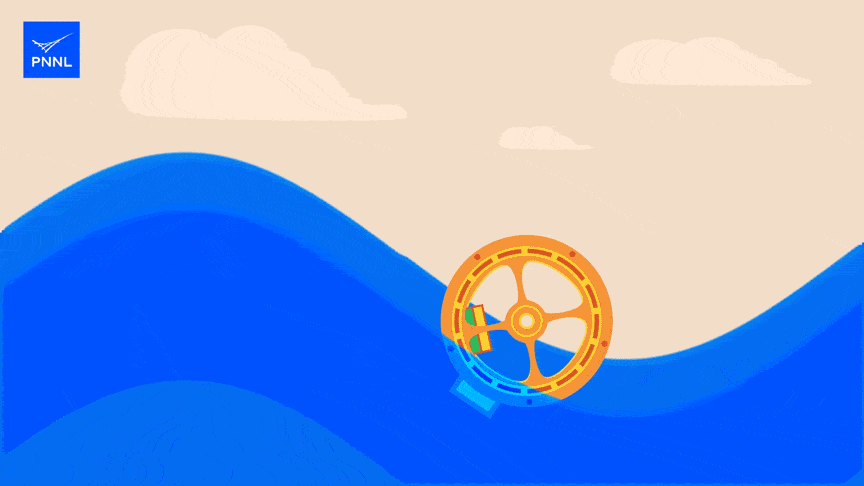

Animation of a new wave energy nanogenerator for observation platforms (Animation by Sara Levine/PNNL)
Animation of a new wave energy nanogenerator for observation platforms (Animation by Sara Levine/PNNL)
Animation of a new wave energy nanogenerator for observation platforms (Animation by Sara Levine/PNNL)

PNNL’s nanogenerator harnesses the energy of the ocean to power sensors and more, with the larger versions of the generator expected to be used to power ocean observation and communications systems, including acoustic and satellite telemetry.

Daniel Deng, a PNNL laboratory fellow and co-developer of the new TENG device, and his team have developed a patent-pending frequency-multiplied cylindrical triboelectric nanogenerator (FMC-TENG), which uses carefully placed magnets to convert energy more efficiently than other cylindrical TENGs and better transform slow, uniform waves into electricity.

“TENGs are low cost, lightweight, and can efficiently convert slow, uniform or random waves into power – making them particularly well-suited to powering devices in the open ocean where monitoring and access are challenging and costly,” said Deng.

So far, the prototype FMC-TENG has been able to produce enough electricity to power an acoustic transmitter – a type of sensor often included on ocean observing platforms that can be used for communications. This is about the same amount of electricity it takes to power an LED lightbulb.

“We’re developing the FMC-TENG to power everything from ocean observing platforms with multiple sensors to satellite communications, all using the power of the ocean,” Deng added.

Rolling down the waves for more energy production

A cylindrical TENG is made up of two nested cylinders with the inner cylinder rotating freely. Between the two cylinders are strips of artificial fur, aluminum electrodes, and a material similar to Teflon called fluorinated ethylene propylene (FEP).

As the TENG rolls along the surface of an ocean wave, the artificial fur and aluminum electrodes on one cylinder rub against the FEP material on the other cylinder, creating static electricity that can be converted into power.

The more a cylindrical TENG moves, the more energy it generates. That is why fast, frequent waves can generate more energy than the slower, more uniform waves of the open ocean. To come up with a TENG that could power electronics in the open ocean, Deng and his team set out to increase the amount of wave energy converted into electricity in the FMC-TENG. Turns out, the key was to temporarily stop the FMC-TENG’s inner cylinder from moving, according to PNNL.

In the FMC-TENG, the team positioned magnets to stop the inner cylinder in the device from rotating until it reached the crest of a wave, allowing it to build up more and more potential energy.

Nearing the crest of the wave, the magnets release and the internal cylinder starts rolling down the wave very quickly. The faster movement produces electricity more efficiently, generating more energy from a slower wave.

Currently, the FMC-TENG prototype can produce enough power to run small electronics, like temperature sensors and acoustic transmitters. As the team iterates on their design for commercial use, the FMC-TENG is expected to produce enough power to run an entire open ocean monitoring platform comprised of multiple sensors and satellite communications

“The FMC-TENG is unique because there are very few wave energy converters that are efficient and able to generate significant power from low-frequency ocean waves. This type of generator could potentially power integrated buoys with sensor arrays to track open ocean water, wind, and climate data entirely using renewable ocean energy,” Deng concluded.

In addition, the FMC-TENG is lightweight and can be used in both free-floating devices and moored platforms, according to PNNL researchers, who received the funding for the work from the US Department of Energy’s Water Power Technologies Office through the Marine Energy Seedling and Sapling Program.
